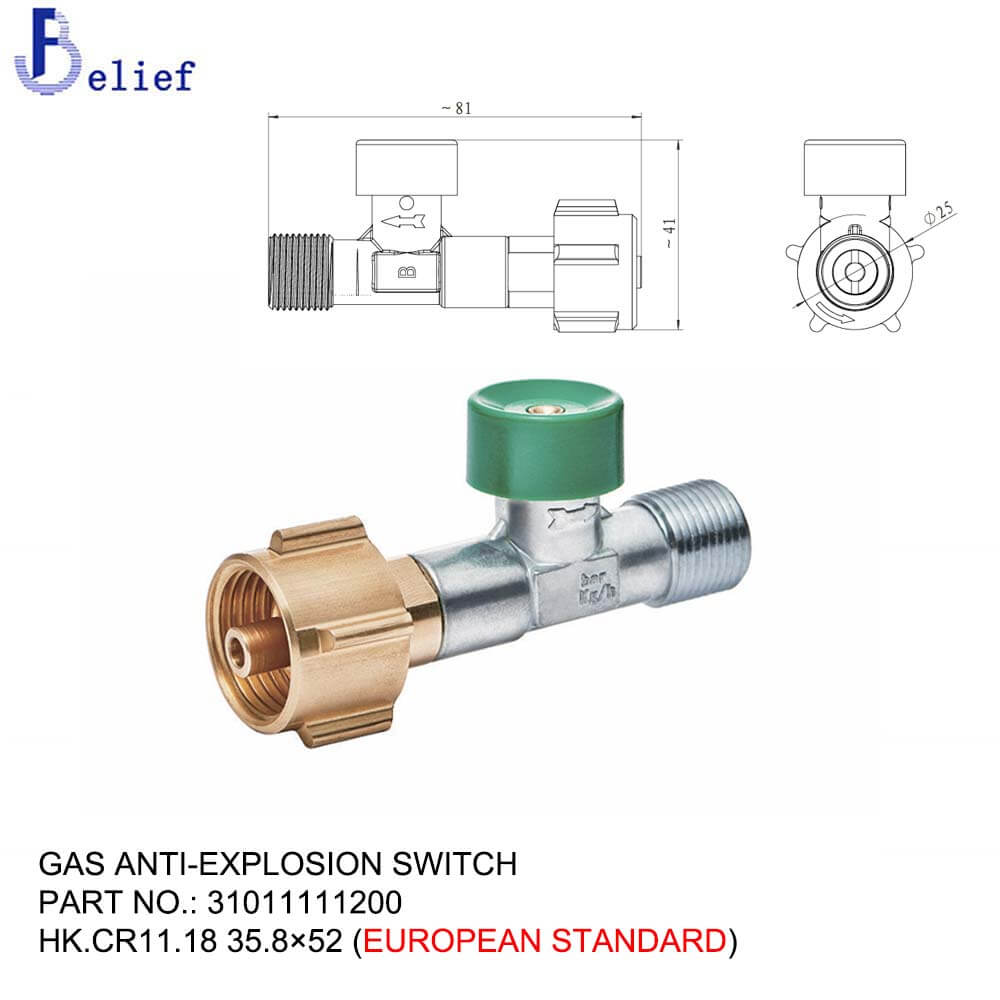

Gas anti-explosion switch 31011111200
The GAS ANTI-EXPLOSION SWITCH 31011111200 for Belief 6KW 12V LPG combi heaters ONLY! It is a safety device designed to monitor and control the flow of gas to the heater, preventing any accidental explosions
Gas anti-explosion switch 31011111200
This GAS ANTI-EXPLOSION SWITCH 31011111200 for Belief 6KW 12V LPG combi heaters ONLY!
Pls check the serial code on the label of the original parts before order.
It is a safety device designed to monitor and control the flow of gas to the heater, preventing any accidental explosions. These switches typically cut off the gas supply when they detect any irregularities in pressure, temperature, or the combustion process, thus preventing hazardous situations.
| Part name | GAS ANTI-EXPLOSION SWITCH |
| Serial code | 31011111200 |
| Specification | HK.CR11.18 35.8×52, EUROPEAN STANDARD |
| Application | 6KW LPG combi heater |
Parameters:
Working temperature：-20 ～ +50℃
Maximum working pressure：3MPa
Hand wheel nut: DIN477-W21.8X1/14 LH(left spiral pattern)
Ferrule nut: G3/8-LH(left spiral pattern )
Product features:
1.When the pipeline is broken or leaks, it automatically shuts down the function to exceeds the stable flow rate.
2.In the event of a collision, the automatic shutdown function exceeds the rated flow rate.
